Type S B R Platinum Rhodium Thermocouple With Ceramic Protection Probe Tube

Brand Name : GME

Certification : CE

Place of Origin : China

MOQ : 50pcs

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 100000 pcs per Month

Delivery Time : 7~10 working days

Packaging Details : cartons， pallet

Power Source : Electric

Temperature range : -200~650℃

Voltage : 12-480V

Probe material : Stainless Steel or Nickel

Pairs quantity of element : Simplex/duplex

Heating Element : Nichrome Resistance

Mounting : Thread/flange/none

Function : Temperature sensor

Types of terminal box : Anti-spray/water-proof

Connection : Thread

Contact Now

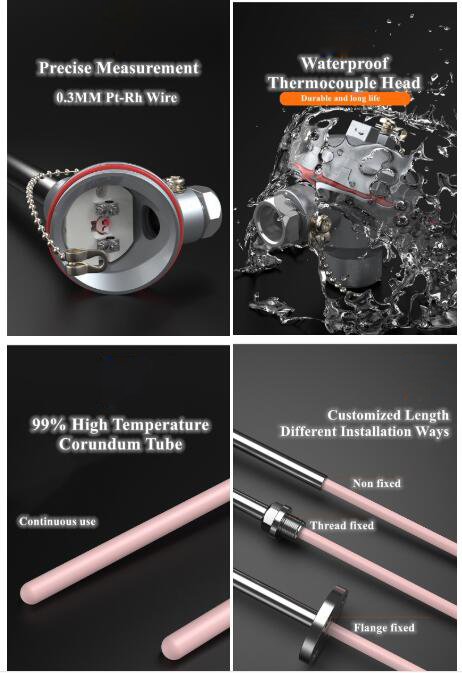

Type S/B/R Platinum Rhodium Thermocouple With Ceramic Protection Probe Tube High Temperature Sensor

Description:

Platinum rhodium thermocouple is made of noble metal,( platium in high purity as cathode,Platium and Rhodium alloy as positive pole), corundum as external tube, which is used to measure as high as 1800C like powder metallurgy, fritting furnace,vacuum furnace, matallurgy furnace and calcination of fire-proof materials, ceramics.
It is widely used in high temperature production process such as glass, ceramic industry and industrial NaCl bathing stove, etc.

Specification:

Conductor Material	Type	Graduation	Continuous temperature	Short-term temperature
PtRh10-Pt	WRP	S	0-1300C	0-1600C
PtRh30-PtRh6	WRR	B	0-1600C	0-1800C
PtRh13-Pt	WRQ	R	0-1300C	0-1600C
NiCrSi-NiSi	WRM	N	0-1000C	0-1100C
NiCr-NiSi	WRN	K	0-900C	0-1000C
NiCr-Konstantan	WRE	E	0-600C	0-700C
Fe-Konstantan	WRF	J	0-500C	0-600C
Cu-Konstantan	WRC	T	0-350C	0-400C

Type S B R Platinum Rhodium Thermocouple With Ceramic Protection Probe Tube

Application:

It is usually connected with display meter, recording meter and computer, etc. to directly measue temperature of liquid, vapor, gas and solid surface ranging from 0°C to 1300C during various production process.
