Customized J type thermocouple with Mineral Insulated spring fixed bayonet
Description:
1) Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.
2) A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
3) Thermocouples are very simple and durable temperature sensors. Thermocouple come with different pairings of materials allowing for a very wide range of applications. The different compositions are standardized into thermocouple types. The different types are given letter names which are standardized across the industry.
Specification:
(1) Thermal potential
Heat characters: The temperature of thermocouple on flame is 600-700 cool characters: The temperature of thermocouple on flame is 600-700.
(2) Inner resistance
Accord to its type and length and the tolerance is in +_10% 10% as irequested.
(3) Length
According to request of customers
(4) Forehead & terminal
According to request of customers
Advantage:
1, High accuracy, good stability
2, popular and economic
3, Wide temperature range: 0-1300
4, 100% qualified factory test.
| Thermocouple catagory | Graduation mark | Thermometric scope | Protection tubings | Specification Total length |
| Pt Rh30 –Pt Rh6 | B | 0~1200°C | GH3039 GH747 PtRh6 | Self-determined by customers |
| Pt Rh 10- Pt | S/R | 0~1150°C | 310S GH3030 INCONEL600 |
| Ni Cr Si – Ni Si | N | 0~1050°C | 304 321 310S GH3030 INCONEL600 |
| Ni Cr Si – Ni Si | K | 0~800°C 0~1000°C | 304 321 310S GH3030 INCONEL600 |
| Ni Cr-Konstantan | E/J | 0~600°C | 304 321 316L |
| Cu-Konstantan | T | 0~300°C | 304 321 316L |
Related products:
Application:
• Food processing equipment
• De-icing
• Plating baths
• Industrial processing
• Medical equipment
• Pipe tracing control
• Industrial heat treating
• Packaging equipment
• Liquid temperature measurement
• Refrigerator temperature control
• Oven temperature control

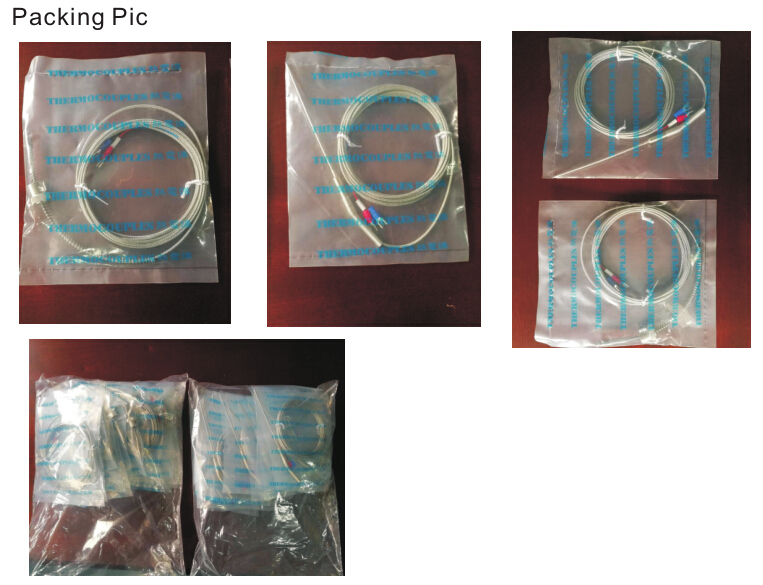

Packing:
